Table shrdb.LAWRS.ERS_ELEMENTS Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ELEMENTID number 22
ERS_ELEMENTREFERENCES.ELEMENTID Implied Constraint R
ERS_RULEDETAIL.ELEMENTID Implied Constraint R
ERS_RULEVALUES.ELEMENTID Implied Constraint R
ERS_STRUCTURETEMPLATE.ELEMENTID Implied Constraint R
ERS_STRUCTURETOFIELDMAP.ELEMENTID Implied Constraint R
ELEMENTNAME nvarchar2 400  √  null
ELEMENTDESCRIPTION nvarchar2 400  √  null
DATATYPE nvarchar2 100  √  null
DATASIZE number 22  √  null
SIGNED nvarchar2 2  √  null
NBRDECIMALS number 22  √  null
MINVALUE nvarchar2 510  √  null
MAXVALUE nvarchar2 510  √  null
FORMAT nvarchar2 100  √  null
DEFAULTVALUE nvarchar2 400  √  null

Table contained 15 rows at Thu Dec 13 15:47 CST 2012

Indexes:
Column(s) Type Sort Constraint Name
ELEMENTID Primary key Asc SYS_C0011482

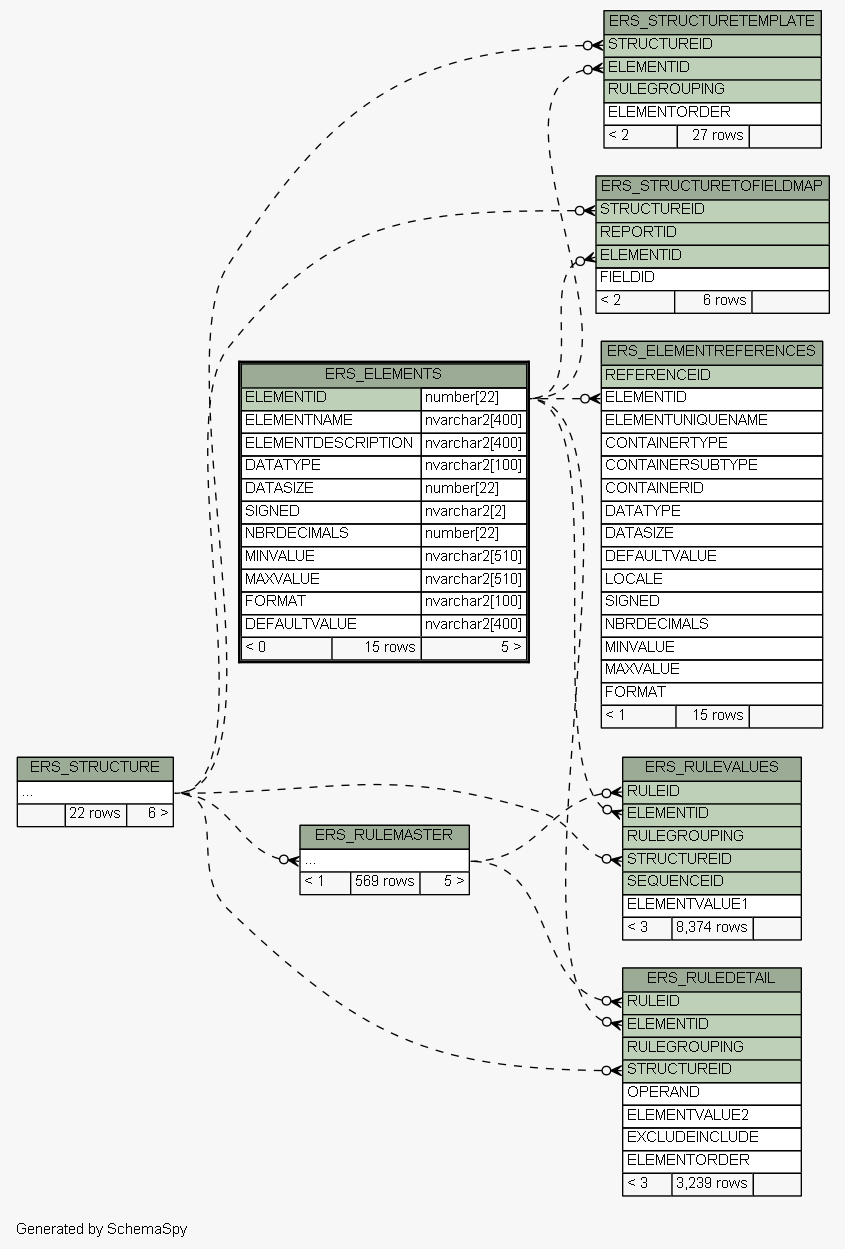

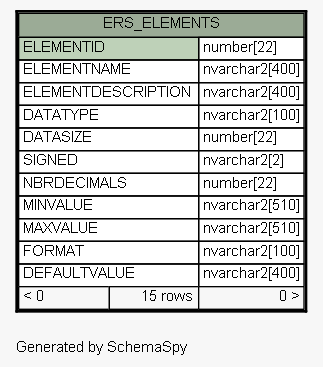

Close relationships:
