Table lawprod.MSCM.BATCH_ITEMS Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
BI_ID number 22
BI_NO varchar2 20
BATCH_NO varchar2 20
BATCH.BATCH_NO SYS_C00914076 R
TS_NO varchar2 10
TRAYSET.TS_NO SYS_C00914077 R
ACTIVITY_LOC_NO number 22
LOCATION.LOCATION_ID SYS_C00914078 R
ACTIVITY number 22

Analyzed at Wed May 18 12:10 CDT 2011

Indexes:
Column(s) Type Sort Constraint Name
BI_NO Primary key Asc SYS_C00914075

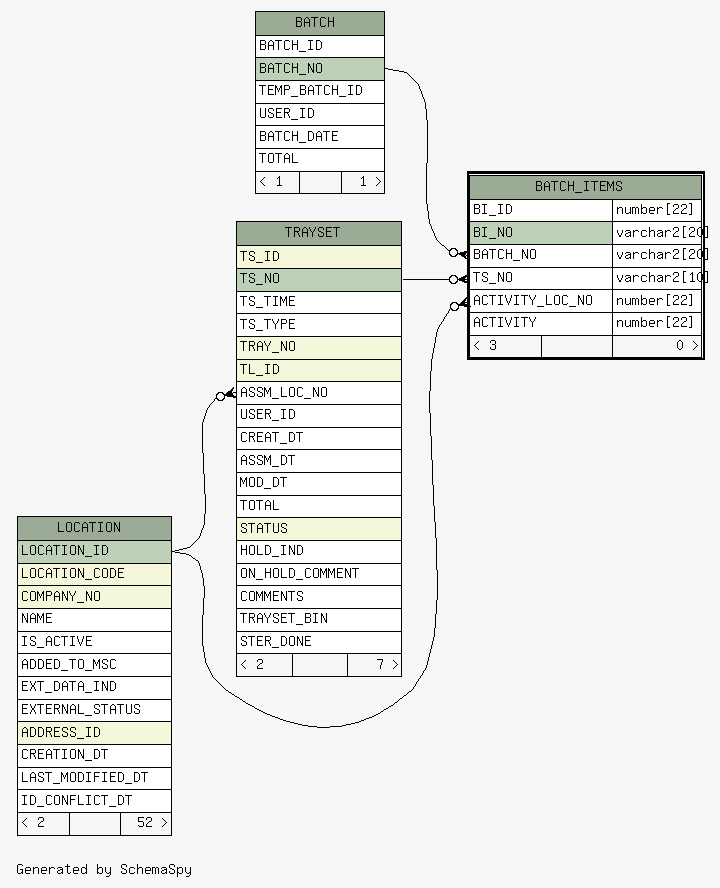

Close relationships  within of separation:
