Table lawprod.MSCM.CONTENT_RESULT_LOG Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
DB_ID number 22
PROC_STAGE.DB_ID Implied Constraint R
LOAD_ID number 22  √  null
LOAD_STER.LOAD_ID SYS_C00914059 R
ACTION_DESC varchar2 50  √  null
PARAM_ID number 22  √  null
PROC_STAGE_SETTING.DB_ID SYS_C00914060 R
ASID varchar2 10  √  null
TRAYSET.TS_NO SYS_C00914061 R
USER_ID number 22  √  null
USERS.USER_ID SYS_C00914062 R
LOG_DATE date 7  √  null
OLD_VALUE varchar2 50  √  null
NEW_VALUE varchar2 50  √  null

Analyzed at Wed May 18 12:10 CDT 2011

Indexes:
Column(s) Type Sort Constraint Name
DB_ID Primary key Asc SYS_C00914058

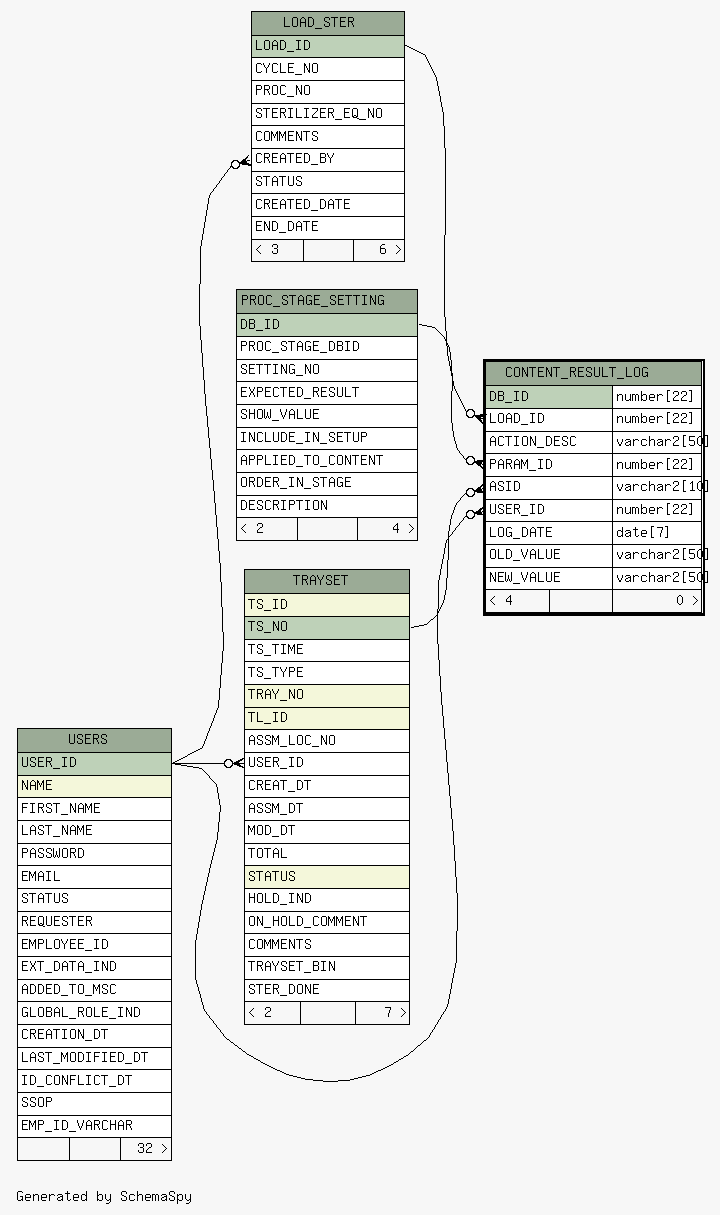

Close relationships  within of separation:
