Table lawprod.MSCM.EVENT_STATUS_RANK Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
STATUS_CODE varchar2 8
EVENT_DETAIL.DETAIL_UPLOAD_IND SYS_C00913584 R
EVENT_HEADER.HEADER_UPLOAD_IND SYS_C00913576 R
DESCRIPTION varchar2 30
RANK number 22

Analyzed at Wed May 18 12:10 CDT 2011

Indexes:
Column(s) Type Sort Constraint Name
STATUS_CODE Primary key Asc SYS_C00913567
RANK Must be unique Asc SYS_C00913568

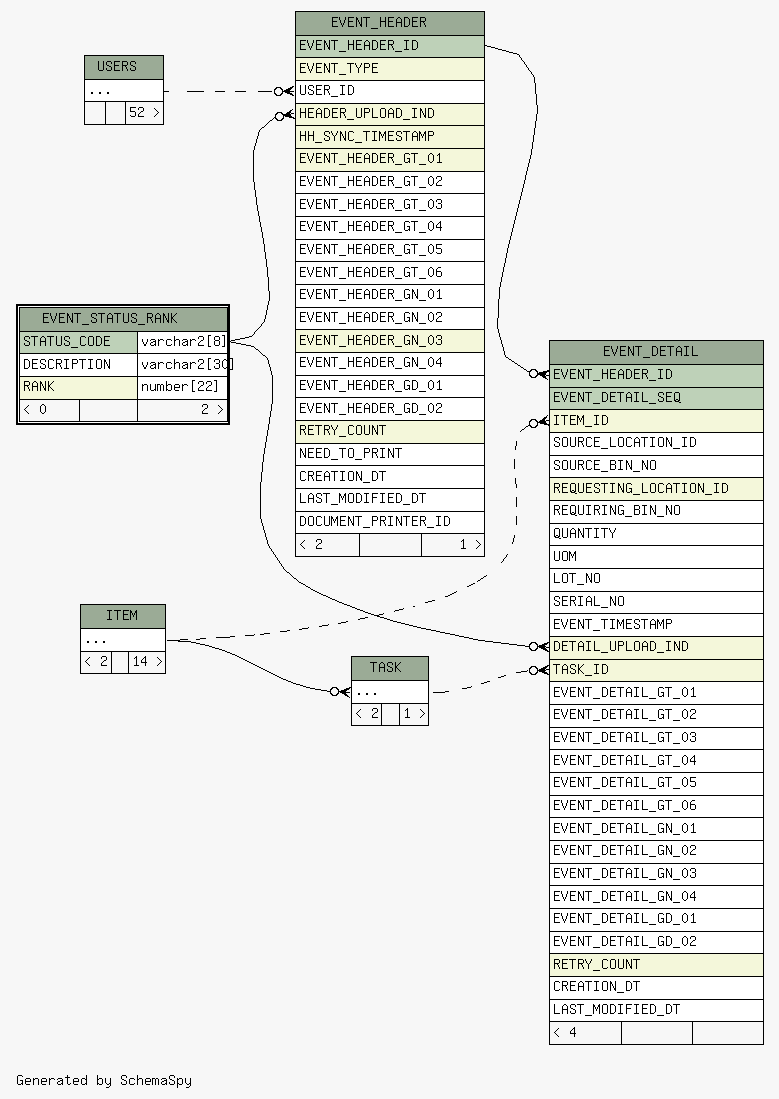

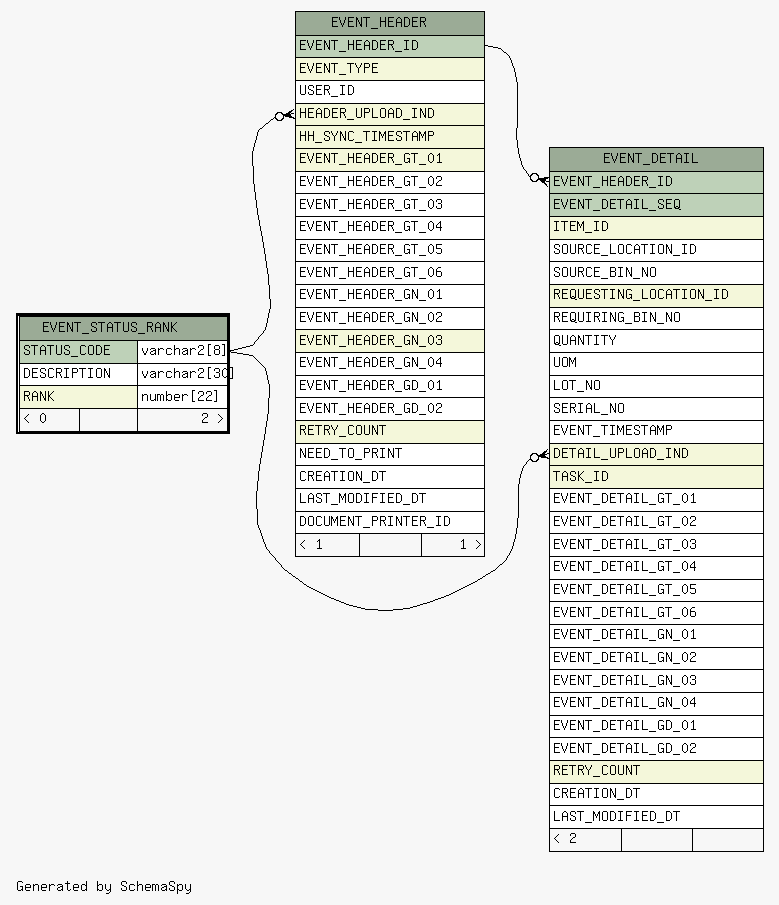

Close relationships:
