Table lawprod.MSCM.LAWSON_ICAUDIT Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
TXN_DATE date 7
TXN_TIME varchar2 8
ITEM_GROUP varchar2 5  √  null
LAWSON_ITEM_GROUP.ITEM_GROUP Implied Constraint R
COMPANY number 4
LAWSON_COMPANY.COMPANY Implied Constraint R
LOCATION varchar2 5
ITEM varchar2 32
DB_FILE varchar2 3
FLD_NBR number 4  √  null
BEFORE_IMAGE varchar2 32  √  null
AFTER_IMAGE varchar2 32  √  null
CREATION_DT date 7
LAST_MODIFIED_DT date 7  √  null

Analyzed at Wed May 18 12:10 CDT 2011

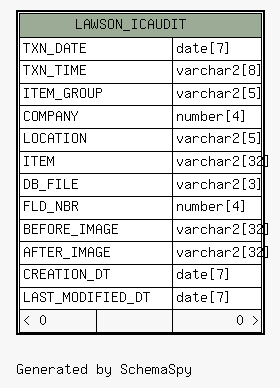

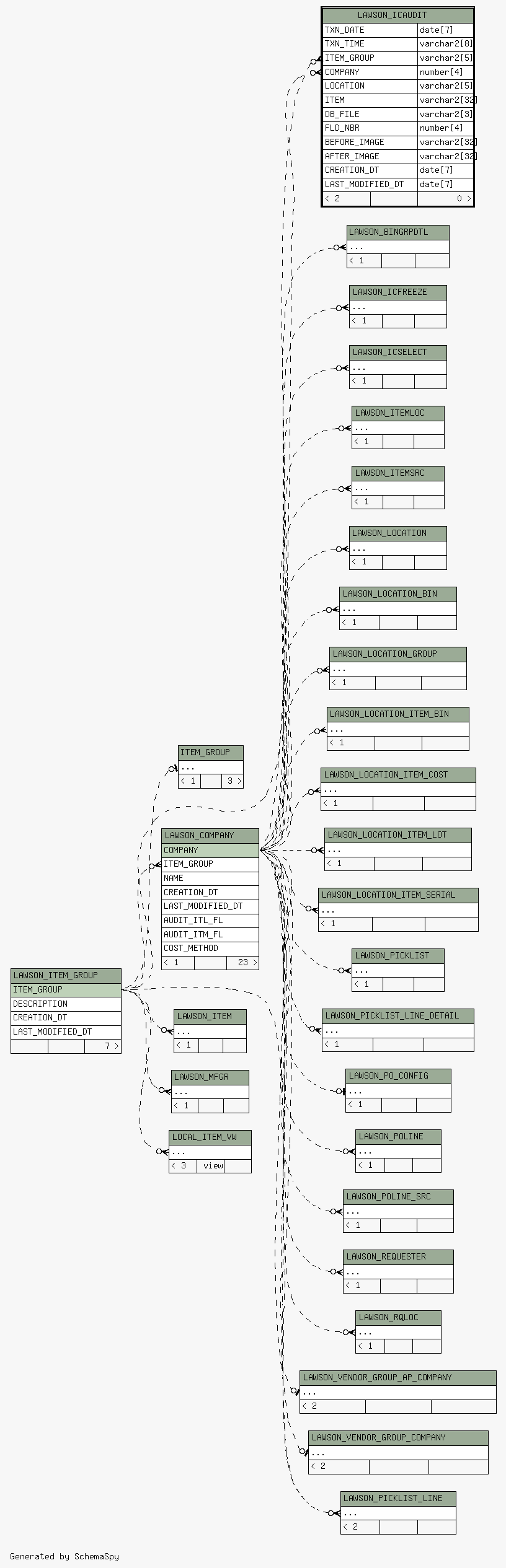

Close relationships:
