Table lawprod.MSCM.LOCATION_SCHEDULE Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
SCHEDULE_ID number 22
LOCATION_SCHEDULED_DAYS.SCHEDULE_ID SYS_C00914876 R
SUPPLY_LOC_ID number 22
LOCATION.LOCATION_ID SYS_C00914866 R
FREQUENCY char 1
START_DATE date 7
END_DATE date 7
CREATE_DATE date 7

Analyzed at Wed May 18 12:10 CDT 2011

Indexes:
Column(s) Type Sort Constraint Name
SCHEDULE_ID Primary key Asc SYS_C00914865

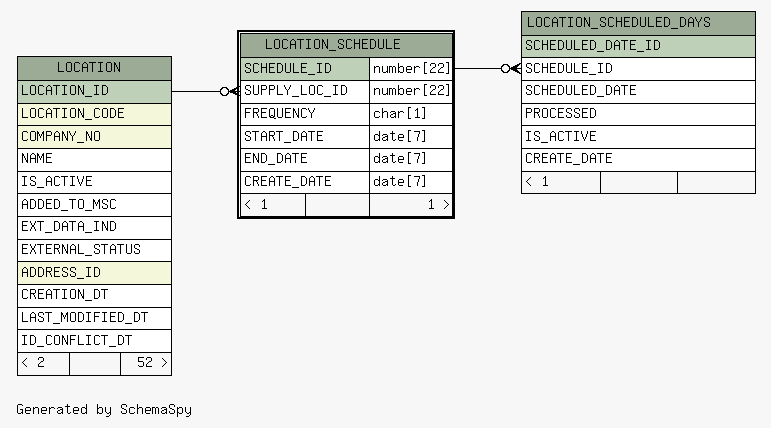

Close relationships  within of separation:
