Table lawprod.MSCM.OBJECT_TYPE Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
OBJECT_TYPE_ID number 22
ATTRIBUTE.OBJECT_TYPE_ID OBJ_TYPE_ID_FK R
NAME varchar2 100  √  null

Analyzed at Wed May 18 12:10 CDT 2011

Indexes:
Column(s) Type Sort Constraint Name
OBJECT_TYPE_ID Primary key Asc OBJ_TYPE_PK

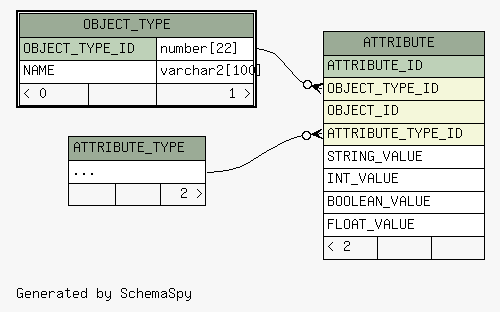

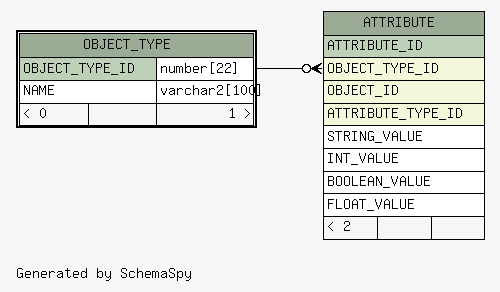

Close relationships  within of separation:
