Table lawprod.MSCM.PO_LINE_DEL Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes

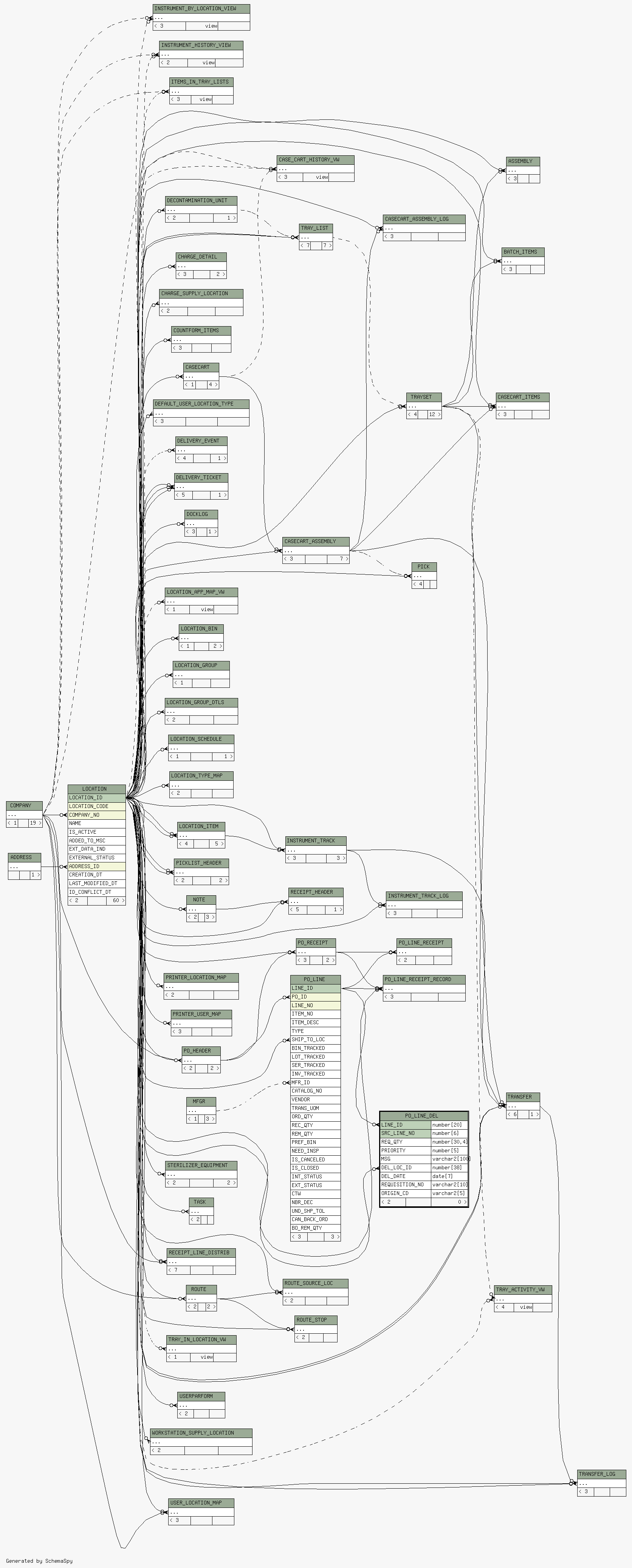

Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
LINE_ID number 20
PO_LINE.LINE_ID SYS_C00914329 R
SRC_LINE_NO number 6
REQ_QTY number 30,4
PRIORITY number 5  √  null
MSG varchar2 100  √  null
DEL_LOC_ID number 38  √  null
LOCATION.LOCATION_ID SYS_C00914330 R
DEL_DATE date 7  √  null
REQUISITION_NO varchar2 10  √  null
ORIGIN_CD varchar2 5  √  null

Analyzed at Wed May 18 12:10 CDT 2011

Indexes:
Column(s) Type Sort Constraint Name
LINE_ID + SRC_LINE_NO Primary key Asc/Asc SYS_C00914328

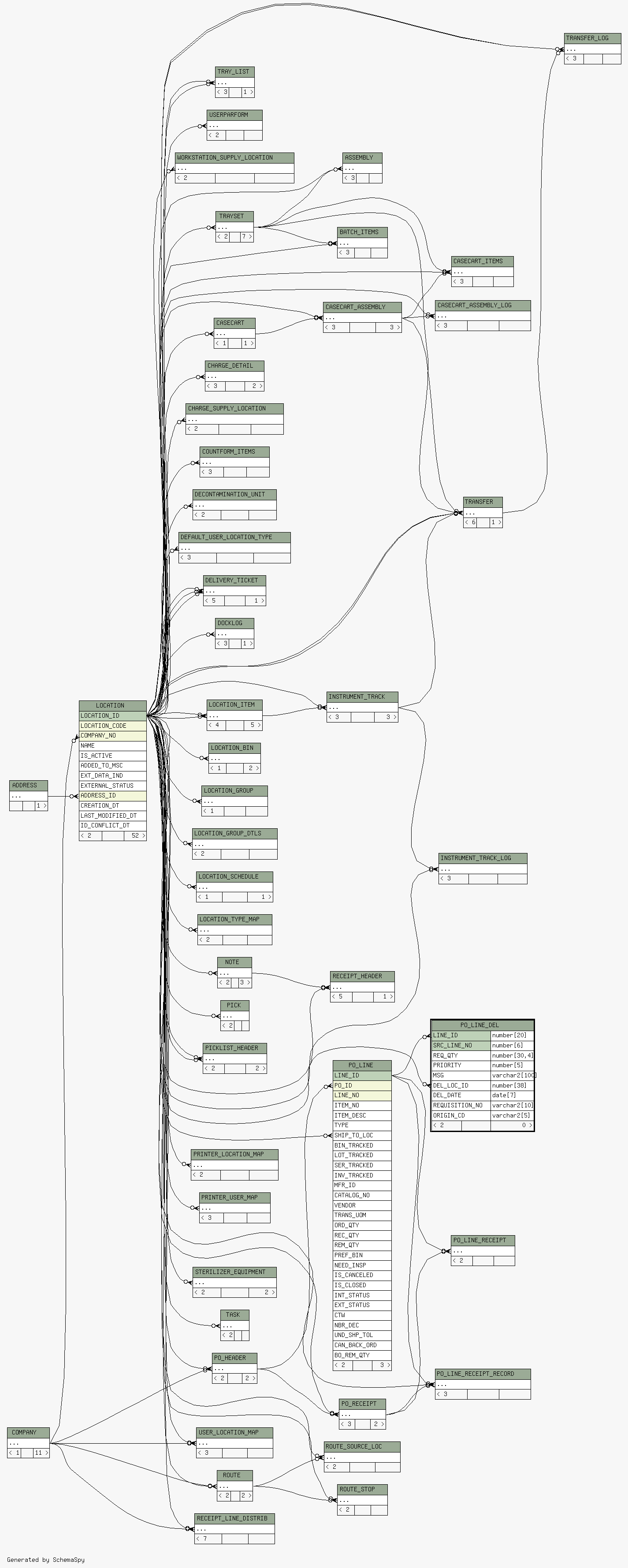

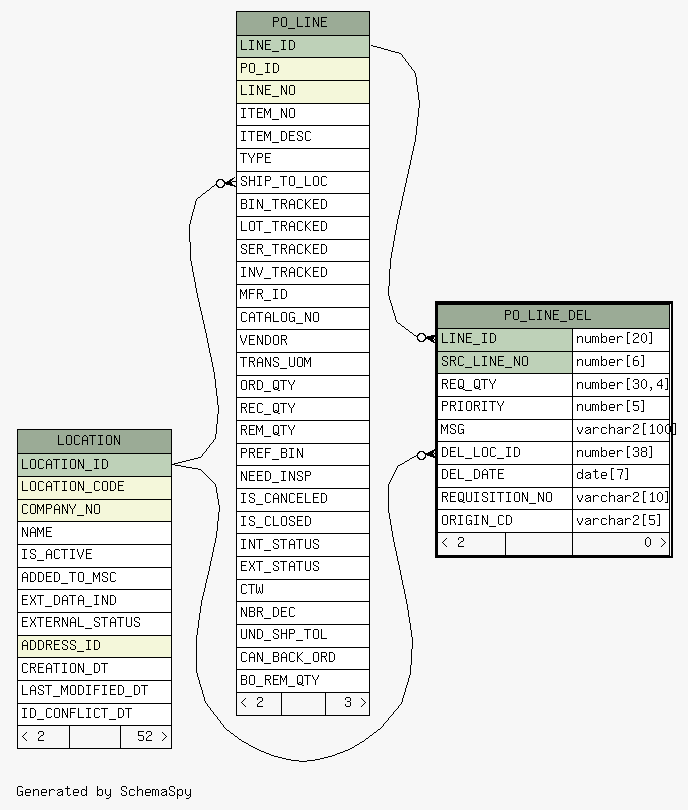

Close relationships  within of separation:
