Table lawprod.MSCM.PRINTER Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
PRINTER_ID number 8
PRINTER_LOCATION_MAP.PRINTER_ID SYS_C00913620 R
PRINTER_USER_MAP.PRINTER_ID SYS_C00914837 R
WORKSTATION_PRINTER_MAP.PRINTER_ID SYS_C00913616 R
PRINTER_NAME varchar2 30
TYPE varchar2 20
COMPANY_NO number 4
COMPANY.COMPANY_NO SYS_C00913611 R
MAKE varchar2 20  √  null
MODEL varchar2 20  √  null
HOST varchar2 256
PORT number 6  √  null
PROTOCOL_NAME varchar2 30  √  null
PRINTER_PROTOCOL.PROTOCOL_NAME SYS_C00913612 R
LPRSERVER varchar2 30  √  null
LANGUAGE varchar2 20  √  null
PRINTER_USER varchar2 30  √  null
PASSWORD varchar2 1024  √  null
MAX_RETRIES number 2  √  null
TIMEOUT number 5  √  null
IS_DEFAULT varchar2 1  √  null
STATUS varchar2 1  √  null

Analyzed at Wed May 18 12:10 CDT 2011

Indexes:
Column(s) Type Sort Constraint Name
PRINTER_ID Primary key Asc SYS_C00913609
PRINTER_NAME + COMPANY_NO Must be unique Asc/Asc SYS_C00913610

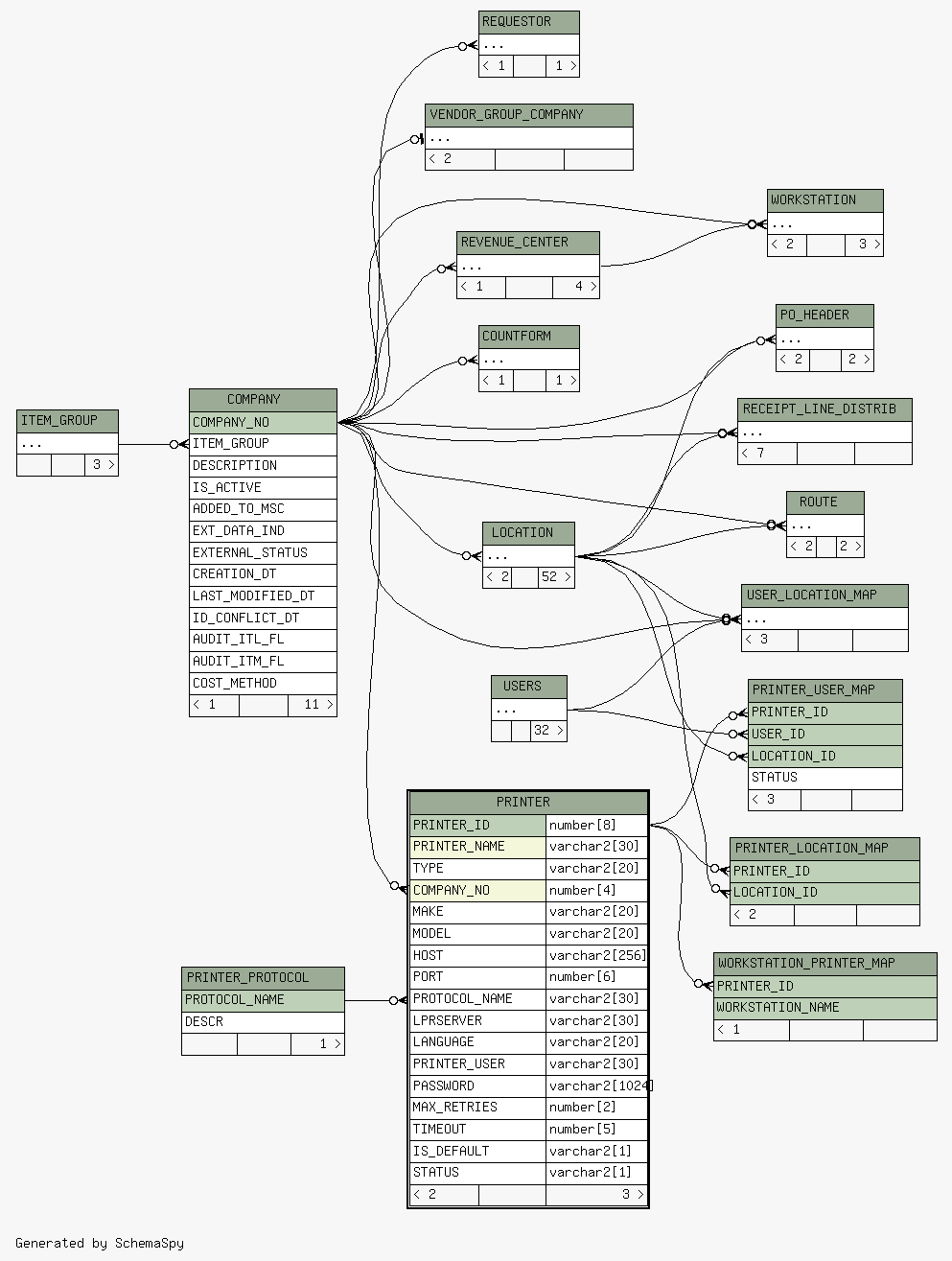

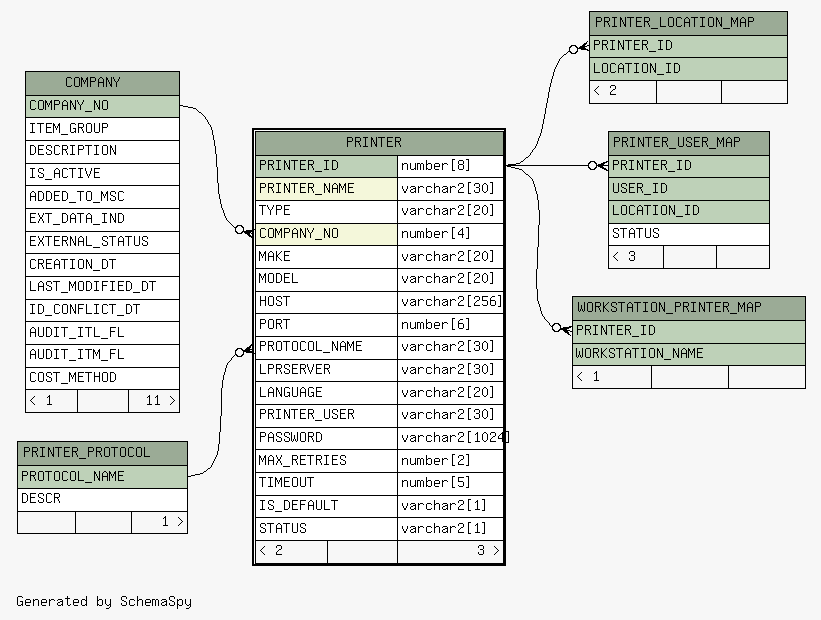

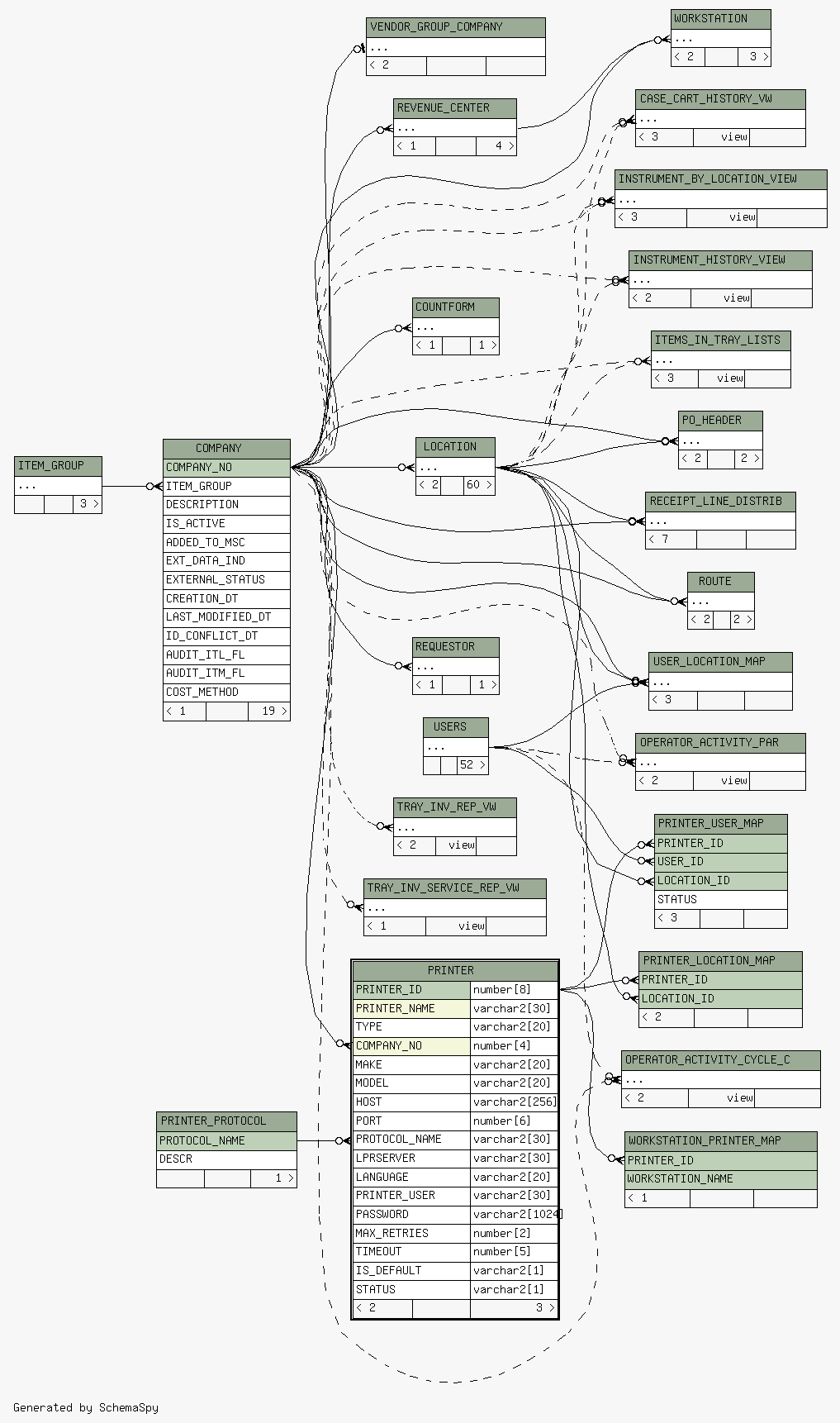

Close relationships  within of separation:
