Table lawprod.MSCM.STERILIZER_EQUIPMENT Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
STERILIZER_EQ_NO number 8
LOAD_STER.STERILIZER_EQ_NO SYS_C00914018 R
LOAD_TRACKING_INFO.STERILIZER_EQ_NO Implied Constraint R
LOAD_TRACKING_INFO_TRAY.STERILIZER_EQ_NO Implied Constraint R
PROC_LOCATION.LOC_NO SYS_C00913996 R
NAME varchar2 100
LOC_NO number 22
LOCATION.LOCATION_ID SYS_C00913974 R
STER_NO number 4
STERILIZATION_TYPE.STER_NO SYS_C00913975 R

Analyzed at Wed May 18 12:10 CDT 2011

Indexes:
Column(s) Type Sort Constraint Name
STERILIZER_EQ_NO Primary key Asc SYS_C00913973

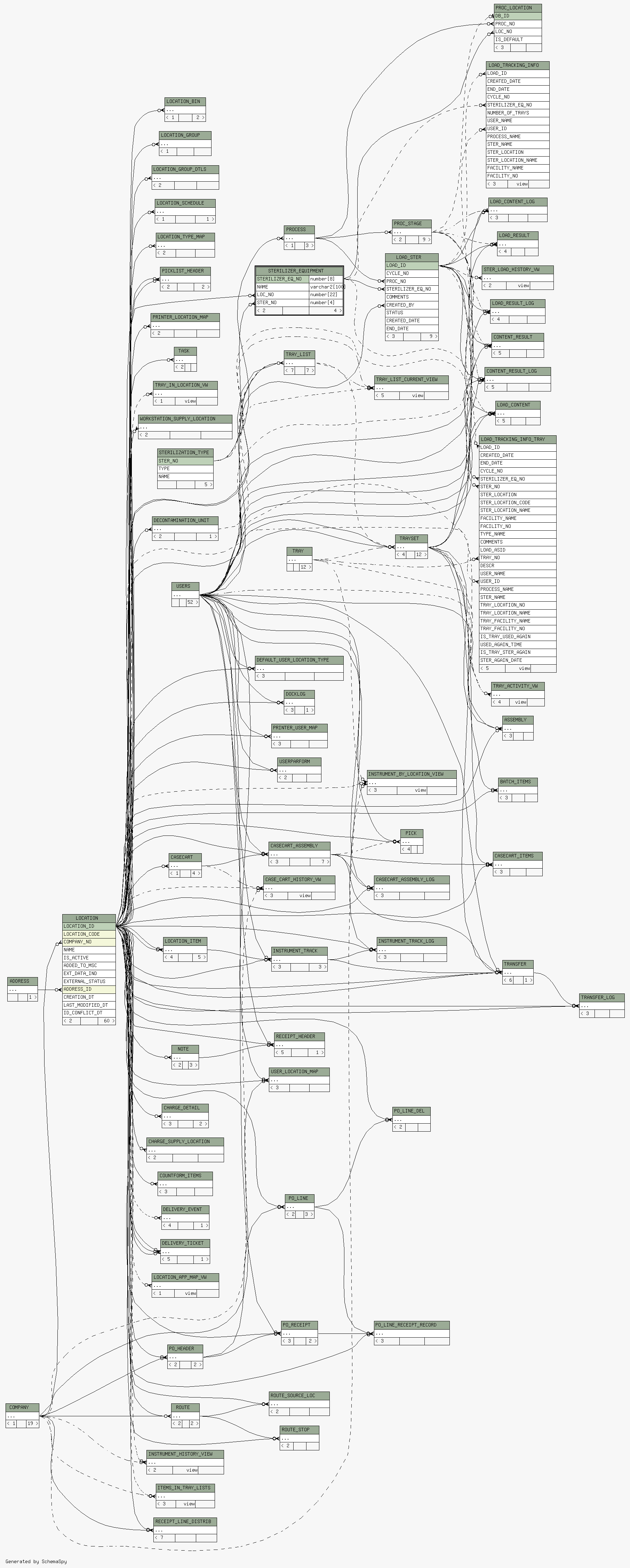

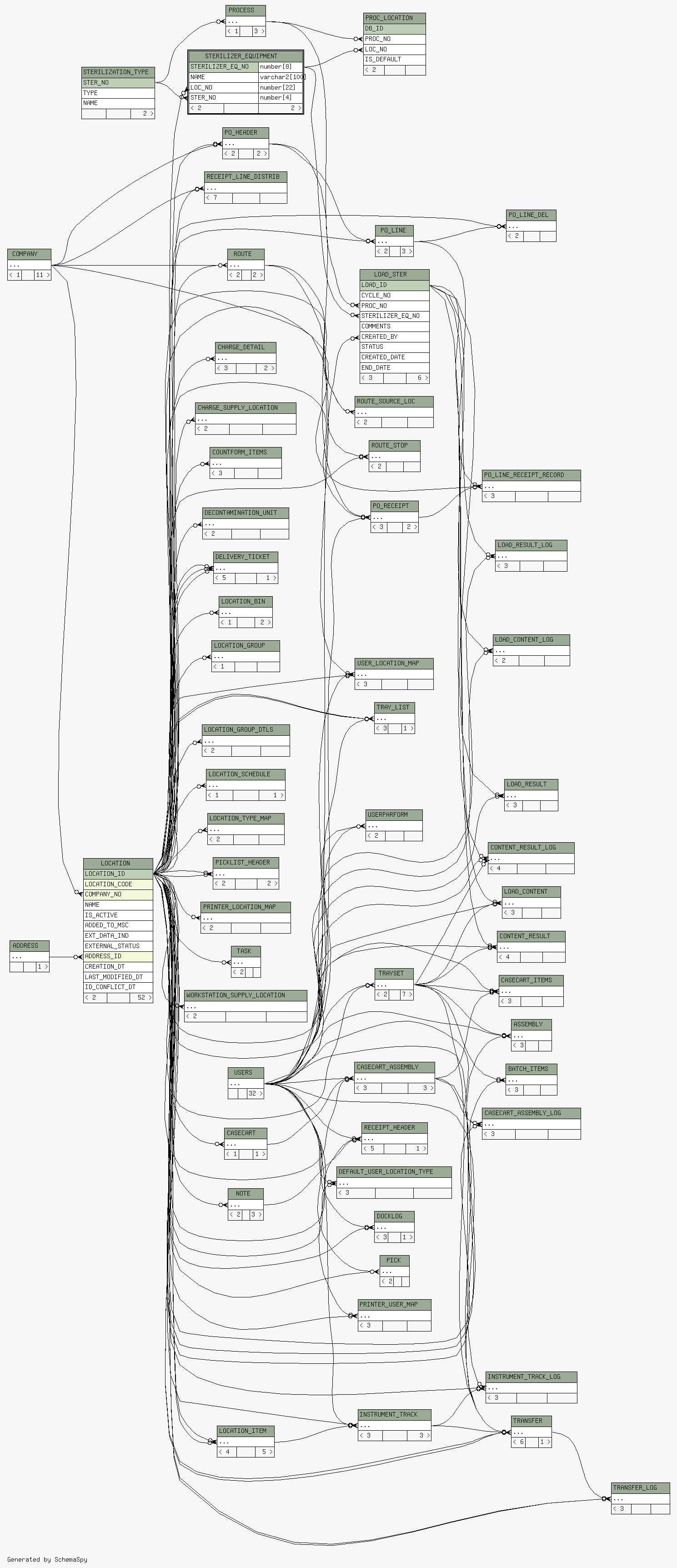

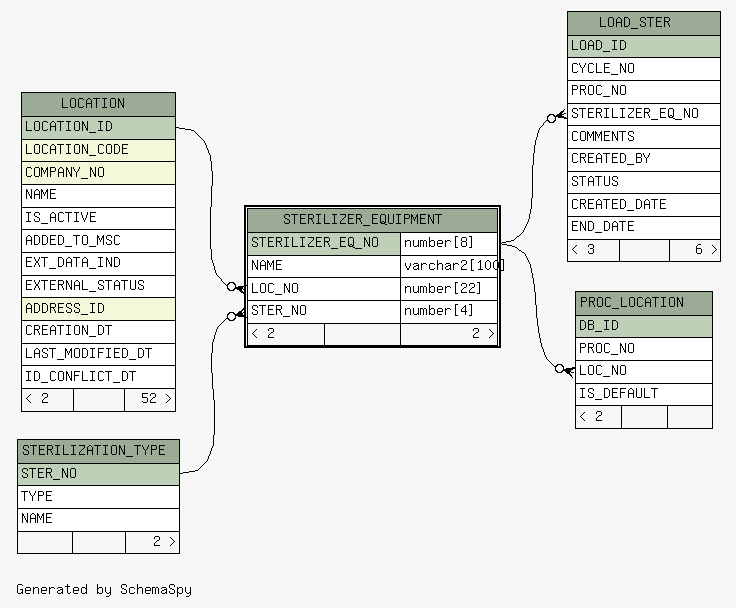

Close relationships  within of separation:
