Table lawprod.MSCM.USER_GROUP Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
USR_GRP_ID number 22
USERGROUP_USERROLE.USR_GRP_ID SYS_C00913374 R
USERS_USERGROUP.USR_GRP_ID SYS_C00913388 R
NAME varchar2 60

Analyzed at Wed May 18 12:10 CDT 2011

Indexes:
Column(s) Type Sort Constraint Name
USR_GRP_ID Primary key Asc SYS_C00913372

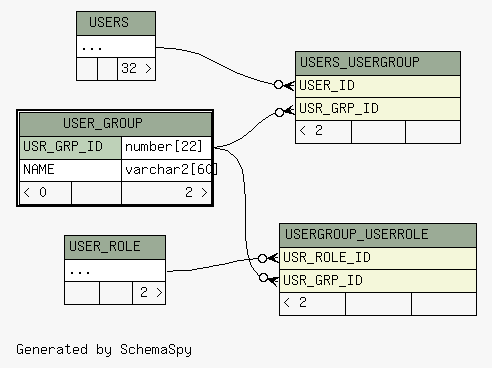

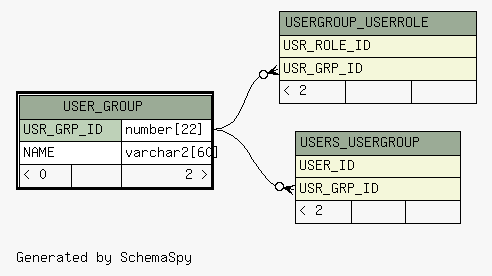

Close relationships  within of separation:
