File chooser in Design Studio
Sort:
Oldest First
Most Recent First
You are not authorized to post a reply.
Author
Messages
John Cunningham
Advanced Member
Posts: 31
3/8/2011 7:45 PM
Is it possible to create a drop down file chooser in design studio. I am looking for something like the html file input box.
John Henley
Senior Member
Posts: 3348
3/9/2011 1:24 PM

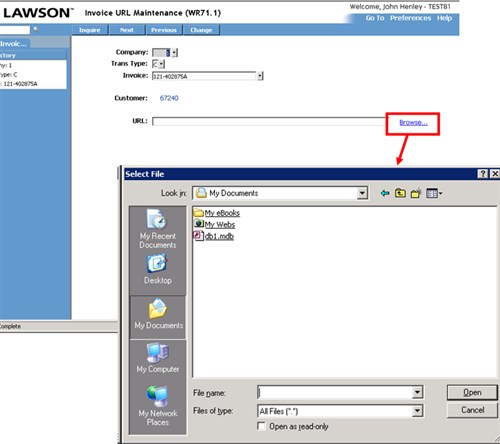

Do you mean like this?
John Cunningham
Advanced Member
Posts: 31
3/9/2011 1:41 PM
Yes, just like that. Is that a custom form?
John Henley
Senior Member
Posts: 3348
3/9/2011 2:22 PM
It's a custom form, but just coincidental. You could implement same functionality with a standard form. In this example the client wanted to store image URLs in a custom table. =
John Cunningham
Advanced Member
Posts: 31
3/9/2011 3:00 PM
How was it done?
John Henley
Senior Member
Posts: 3348
3/9/2011 7:06 PM
The Design Studio customization provides a "browse" button on the form so that a user can select a file from the local file system (or enter a URL). To implement this, originally the "BrowseForURL_ActiveX" function was added, which activated the ActiveX Common Dialog object. However, this failed in testing, since it required both the installation/registration of comdlg32.ocx on the users system, as well as allowing ActiveX objects to be run in the browser--a security risk that just wasn't worth it. In addition, ActiveX objects don't run in non-IE browsers without special handlers, etc.
So, a new (trickier, albeit less elegant) "BrowseForURL_Script" function is used. This script opens a hidden popup (hidden in the sense that it's underneath the main Portal window), which contains script to open a file dialog and set the selected filename into the Portal URL text object (_f8). The primary challenge (and the reason for having to create the popup) is that Design Studio doesn't allow for adding standard HTML input forms/text boxes. So, that was achieved by putting an input text box into a hidden "div" in the pop-up window, and "clicking" that object when the popup is loaded...
Attachments
filechooser.txt
