Table shrdb.LAWSN.ENPENTRYATTR Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
TREEENTRYID number 22
ENPBATREE.TREEENTRYID FK_ENPENTRYATTR_ENPBATREE C
ATTRCATEGORY number 22
ENPATTRLIST.ATTRCATEGORY FK_ENPENTRYATTR_ENPATTRLIST C
ATTRID number 22
ENPATTRLIST.ATTRID FK_ENPENTRYATTR_ENPATTRLIST C
ATTRSTRINGVALUE nvarchar2 400  √  null
ATTRINTVALUE number 22  √  null
ATTRFLOATVALUE number 22  √  null
ATTRDATEVALUE date 7  √  null
ATTRBINARYVALUE blob 4000  √  null

Table contained 43,467 rows at Thu Dec 13 15:47 CST 2012

Indexes:
Column(s) Type Sort Constraint Name
TREEENTRYID + ATTRCATEGORY + ATTRID Primary key Asc/Asc/Asc PK_ENPENTATTR_TEATTRID
ATTRCATEGORY + ATTRID + ATTRDATEVALUE Performance Asc/Asc/Asc I_ENTATTR_IDCATDTE
ATTRCATEGORY + ATTRID + ATTRSTRINGVALUE Performance Asc/Asc/Asc I_ENTATTR_IDCATSTR

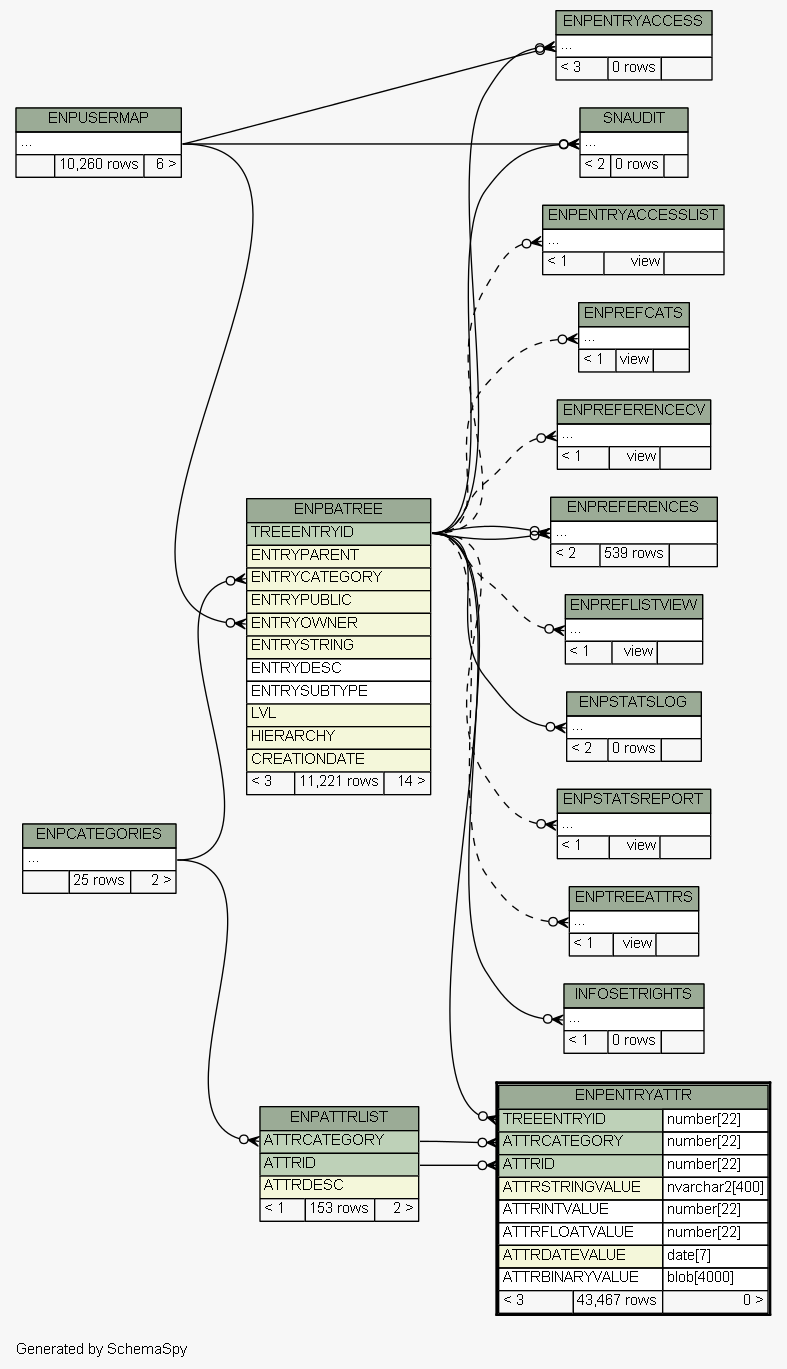

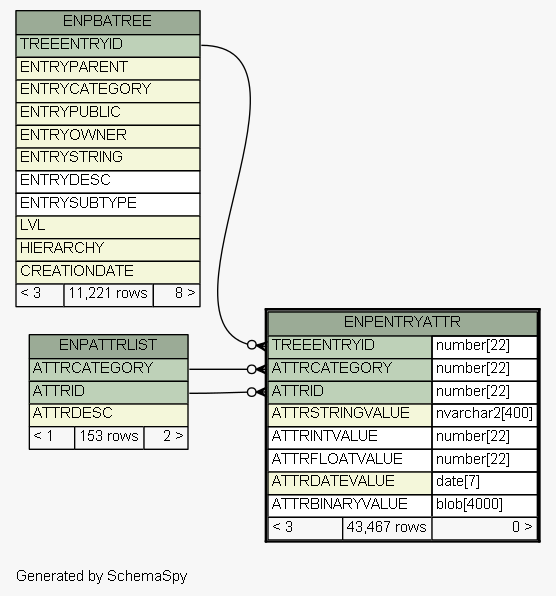

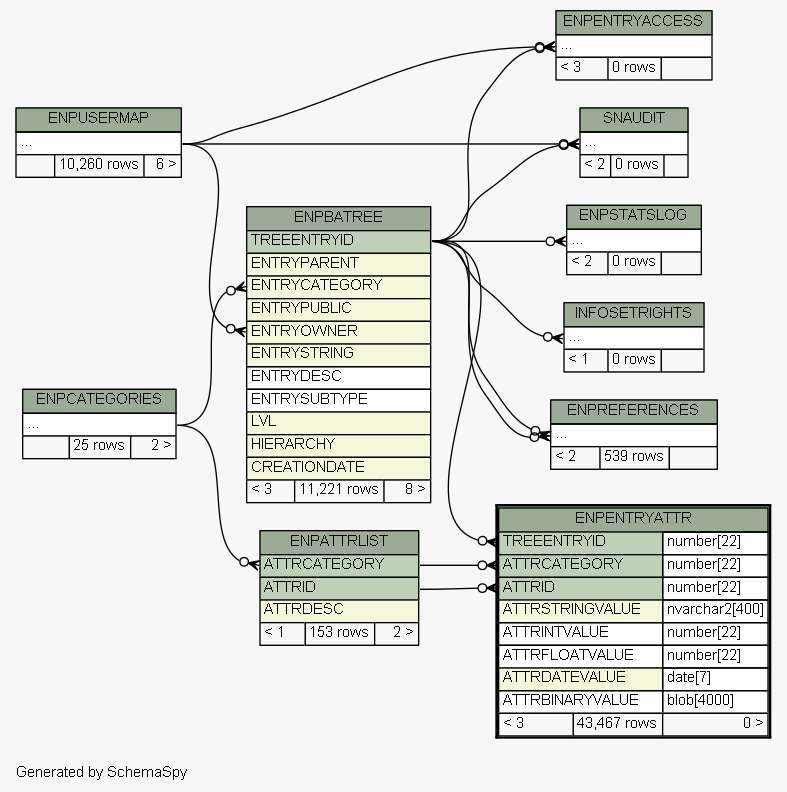

Close relationships  within of separation:
